PRODUCT
Hot Product
Vehicle Tire Changing Machine - GT325 R
Max. Wheel diameter:1120mm(40")
Max. Wheel width:420mm(16")
Inside chuck size:12" -26"
Outside chuck size:10" -24"
Power supply:220V 1PH / 380V 3PH
Frequency:50/60Hz
Working pressure:8-12bar
Bead breaker power per cylinder:2800kg
Rotate speed:Rotate speed
Net weight:241kg
Car Tyre Changer - GT325 R - Tire Changing Machine in China
Parameter:
Technology parameter
Max. wheel diameter
1120mm(40'')
Frequency
50/60 Hz
Max. wheel width
420mm(16'')
Working pressure
8-12bar
Inside chuck size
12''-26''
Bead breaker power per cylinder
2800kg
Outside chuck size
10''-24''
Rotate speed
6-12rpm
Power supply
220V 1PH/380V 3PH
Net weight
241kg
Product Feature：
1. Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more sooth and corrosion resistance, longer life. Drawer control assembl, simple structure fastand easy maintenance.
2. 180 mm diameter steel plated carved two-way intake tire shoulder sepatation cylinder, wear-resisting, rust and corrosion resistant, long service life.
3. Using steel plate combined cabinet, firm structure, weld concealment, beautiful appearance.
Product details
1. Help 1 pneumatic auiiary right arm devide Auxiliary pressure tire right arm design, suitable for a variety of sizes of tyres, a single pointTire pressure, which can help operators more easily finish tire dismantling homework.

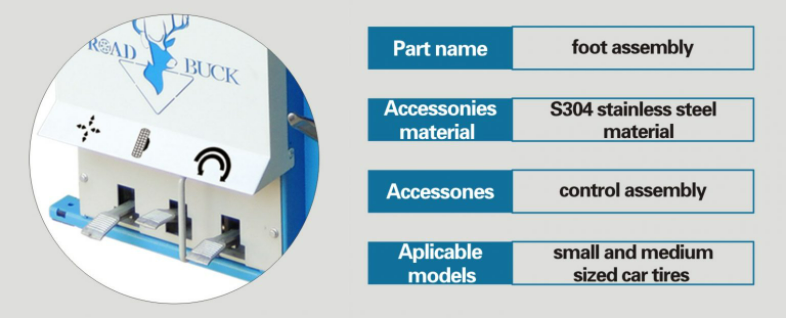

2. Part name - foot assembly
Accessonies material - S304 stainless steel material
Accessones - control assembly
Aplicable models - small and medium sized car tires
.png "Foot assembly")

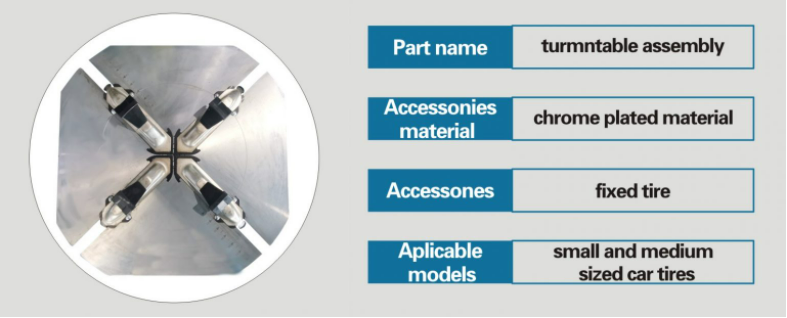

3. Part name - turntable assembly
Accessonies material - chorme plated material
Accessones - fixed tire
Applicable models - small and medium sized car tires
.png "Turntable assembly")
4. Part name - Muti-angle adjustable presure shovel
Accessonies material - solid steel plate
Accessones - shovel tire
Applicable models - small and medium sized car tires

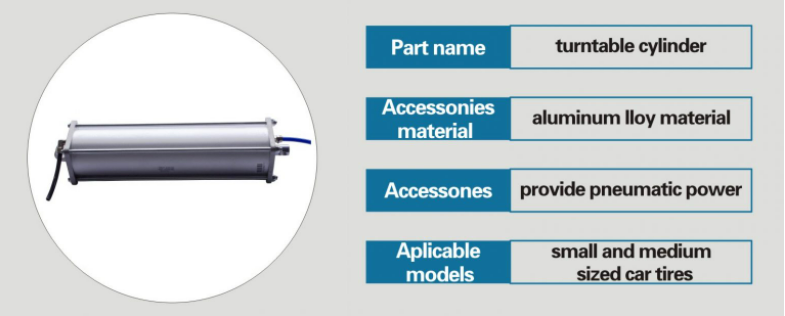

5. Part name - turntable cylinder
Accessonies material - aluminum lloy material
Accessones - provide pneumataic power
Applicable models - small and medium sized car tires
.png "turntable cylinder")
6. Part name - enclosure
Accessones - Matching tyre removal
Applicable models - small and medium sized car tires
After-sales service
1. Warranty period: the core parts of the locator are guaranteed for three years (mobile phone, tablet computer and printer are guaranteed for three months), and the tire remover is guaranteed for one year.
2. Comprehensive coverage of service network: Roadbuck after-sales service network throughout the country 1-2 level cities, service and security can be provided timely during the on-site service period.
3. Service and response: The 1-2 level city after-sales specialist is ready to respond at any time, and customers can contact our telephone support center from Monday to Saturday (8:00 a.m. to 19:00 p.m.)
4. hotline: 0757-86600187
FAQ
1. How long it will take for the shippping to my country?
Usually.it depends on the shipping company and the length of the shipping line.
2. Why choose your company?
Quality and competitive price;Full experiences
Instant, considerate and comfortable service.
3.How to assemble this machine?
Before shipment, we have installed and adjusted some parts for you.
After you receive it , you only need to make a simple installation according to the manual. ALso we will supply a video foor you to guide how to install this machine.
About us
Guangdong RoadBuck Co., Ltd, which is the master of wheel alignment technology established in China July 2005 . We specialize in the Innovative R & D And Sales of Automotive Maintenance Equipment.
With innovation from customers’ usage requirements, leading auto maintenance service solving plans and continuously developed user experience, Road Buck product competitiveness has further strengthened in the market. Now our products have sold to more than 30 countries and regions, and we have provided service to more users in auto maintenance sector.
The dedicated work attitude and persistent endeavor of Road Buck staff guarantee quality product, thoughtful service and on-going create maximum value for the users. Today Road Buck has quickly developed as one of the most valuable auto maintenance equipment brands in China.
Car Tyre Changer - GT325 R Tire Equipment Tire Changing Machine
Parameter:
| Technology parameter | |||
| Max. wheel diameter | 1120mm(40'') | Frequency | 50/60 Hz |
| Max. wheel width | 420mm(16'') | Working pressure | 8-12bar |
| Inside chuck size | 12''-26'' | Bead breaker power per cylinder | 2800kg |
| Outside chuck size | 10''-24'' | Rotate speed | 6-12rpm |
| Power supply | 220V 1PH/380V 3PH | Net weight | 241kg |
Product Feature：
1. Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more sooth and corrosion resistance, longer life. Drawer control assembl, simple structure fastand easy maintenance.
2. 180 mm diameter steel plated carved two-way intake tire shoulder sepatation cylinder, wear-resisting, rust and corrosion resistant, long service life.
3. Using steel plate combined cabinet, firm structure, weld concealment, beautiful appearance.
Product details
Help 1 pneumatic auiiary right arm devide Auxiliary pressure tire right arm design, suitable for a variety of sizes of tyres, a single pointTire pressure, which can help operators more easily finish tire dismantling homework.
After-sales service
1. Warranty period: the core parts of the locator are guaranteed for three years (mobile phone, tablet computer and printer are guaranteed for three months), and the tire remover is guaranteed for one year.
2. Comprehensive coverage of service network: Roadbuck after-sales service network throughout the country 1-2 level cities, service and security can be provided timely during the on-site service period.
3. Service and response: The 1-2 level city after-sales specialist is ready to respond at any time, and customers can contact our telephone support center from Monday to Saturday (8:00 a.m. to 19:00 p.m.)
4. hotline: 0757-86600187
FAQ
1. How long it will take for the shippping to my country?
Usually.it depends on the shipping company and the length of the shipping line.
2. Why choose your company?
Quality and competitive price;
Full experiences
Instant, considerate and comfortable service.
3.How to assemble this machine?
Before shipment, we have installed and adjusted some parts for you.
After you receive it , you only need to make a simple installation according to the manual. ALso we will supply a video foor you to guide how to install this machine.
About us
Guangdong RoadBuck Co., Ltd, which is the master of wheel alignment technology established in China July 2005 . We specialize in the Innovative R & D And Sales of Automotive Maintenance Equipment.
With innovation from customers’ usage requirements, leading auto maintenance service solving plans and continuously developed user experience, Road Buck product competitiveness has further strengthened in the market. Now our products have sold to more than 30 countries and regions, and we have provided service to more users in auto maintenance sector.
The dedicated work attitude and persistent endeavor of Road Buck staff guarantee quality product, thoughtful service and on-going create maximum value for the users. Today Road Buck has quickly developed as one of the most valuable auto maintenance equipment brands in China.
